QJ 2394 - 1992 Stainless Steel 304 M1.6-M12 Hexagon Head Nuts
Commonly Hexagonal Heavy-series nuts used with studs. The nonbearing face of a nut is chamfered, while load Bearing face is finished with a washer face or may be chamfered.
| Sign In | Join Free | My ecer.com.ru |
 |
Brand Name : TOBO
Model Number : Hexagon Nuts
Certification : CE/SGS/ISO
Place of Origin : China
MOQ : 20Kg
Price : USD600-1500/TON
Payment Terms : T/T
Supply Ability : Max 150 tons/month
Delivery Time : According to the order
Packaging Details : Neutral packaging or customized packaging
Standard : DIN,ISO,ANSI,DIN ANSI JIS ISO,GB
Color : Silver,Blue,Yellow,silver or black color,Black
Packing : carton box and kraft box,suit for shipping or according to requirement
Surface : Dacromet,Black/Gray Phos,Chrome,Plain,Passivation
Material : stainless steel,Carbon Steel,brass,Q235,Aluminum
Size : M2-M12 or customized,M2~M64,M2-M100,M3-M24,1/2"-4"
QJ 2394 - 1992 Stainless Steel 304 M1.6-M12 Hexagon Head Nuts
Commonly Hexagonal Heavy-series nuts used with studs. The nonbearing face of a nut is chamfered, while load Bearing face is finished with a washer face or may be chamfered.
1. Certification: ISO, ROHS, SGS
 2. Available Standard: DIN, ANSI, ASTM, JIS, BSW
 3. Strength: Grade 4.8,Grade 8.8,Grade10.9,Grade12.9 A2-70, A4-70, A4-80
 4. Finishing: Yellow, blue, white zinc plated, Galvanized,HDG,Chromate,Dacromet
 5. Available material: Carbon steel, stainelss steel SS304, A2 ,Stainless steel SS314,A4.
 6. Size: M2-M100, Length: 5-300mm, Moq: 500pcs, Port: Shenzhen, Shanghai
 7. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.

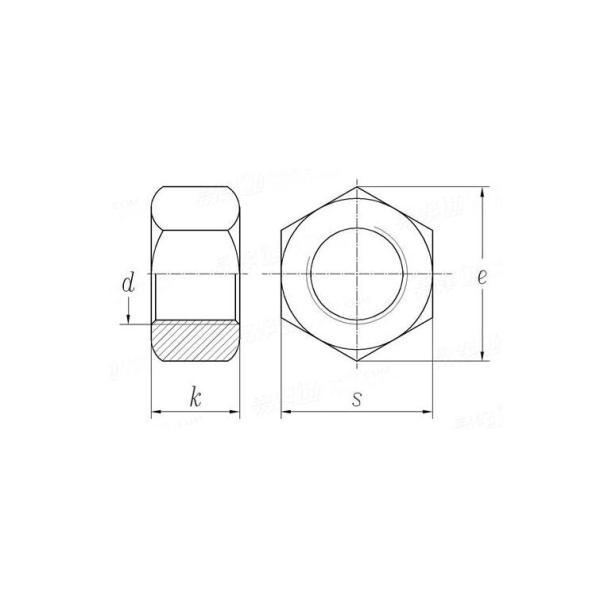

| Thread Specification d | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | |
| P | Screw Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 |
| e | Min | 3.41 | 4.32 | 5.45 | 6.01 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 |
| k | Max | 1.3 | 1.6 | 2 | 2.4 | 3.2 | 4.7 | 5.2 | 6.8 | 8.4 | 10.8 |
| Min | 1.05 | 1.35 | 1.75 | 2.15 | 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | |
| s | Max | 3.2 | 4 | 5 | 5.5 | 7 | 8 | 10 | 13 | 16 | 18 |
| Min | 3.02 | 3.82 | 4.82 | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | |


|   |
| QJ 2394 - 1992 Stainless Steel 304 M1.6-M12 Hexagon Head Nuts Images |
